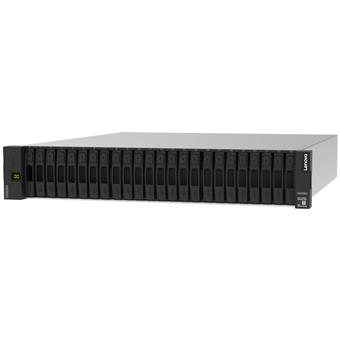

Storage DE4200H 64GB HICless Hybrid Flash 2U24 SFF

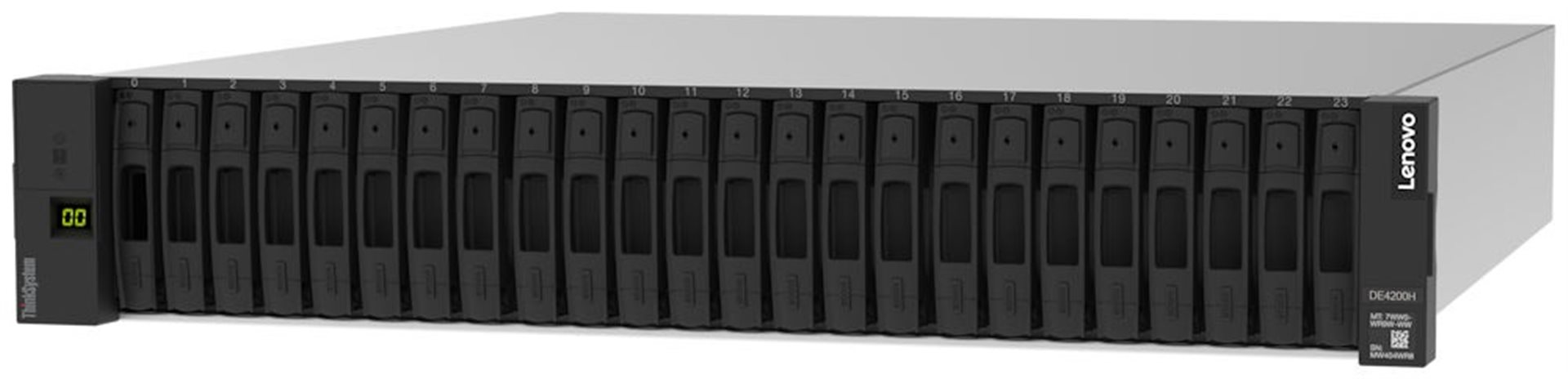

 Lenovo ThinkSystem DE4200H Hybrid Flash 2U24 SFF

Form factor: 2U rack mount
RAID levels: RAID 0, 1, 3, 5, 6, and 10; Dynamic Disk Pools. (RAID 3 môže byť configured only cez CLI.)
Controller system memory: 64 GB per system (32 GB per controller). Cache mirroring between the controllers. Flash-backed cache protection (includes & battery for destaging to flash)
Expansion enclosure support: 3x DE120S, 3x DE240S
Drives bays:With 3x DE120S LFF expansion enclosures: 24 SFF + 36 LFF drive bays: (60 drives)With 3x DE240S SFF expansion enclosures: 24 SFF + 72 SFF drive

Drives: 10K rpm SAS HDDs10K rpm SAS FIPS HDDsSAS SSDs (1 DWD)

Storage capacity: Up to 1.474 PB (96x 15.36 TB SFF SSDs)

Hosť connectivity:

Base ports (per controller enclosure with 2 controllers):

• 4x 10/25&bb;Gb iSCSI host ports (2 ports per controller)

Host connectivity ports previded using host interface cards (HICs). Listované nižšie sú porty pre enclosure. Each enclosure supports two controllers:

• 8 x 12 Gb SAS host ports (Mini-SAS HD, SFF-8644) (4 ports per controller)
• 8x 10 Gb BaseT hosting ports (RJ45 Cat5/6 cables)(4 ports per controller)
• 8x 16/32 Gb FC SFP+ hosť porty (SW fiber optics [LC]) (4 porty na ovládače)

Power supply: Two redundant hot-swap 913 W (100 - 240 V) (2U24 a 2U12 enclosures) Platinum AC power supplies.
Standard softvér features: Dynamic Disk Pools, SSD read cache, snapshots (up to 128 targets), volume copy, thin provisioning (DDP only), encryption (requires optional FIPS drives), and data assurance.
Dimensions (HxWxD mm): 85x449x511
Weight: 24.59 kg

Záruka:  3 years
Odkaz na stránku výrobcu: https://lenovopress.lenovo.com/lp2071-lenovo-thinksystem-de4200h-hybrid-storage-array
