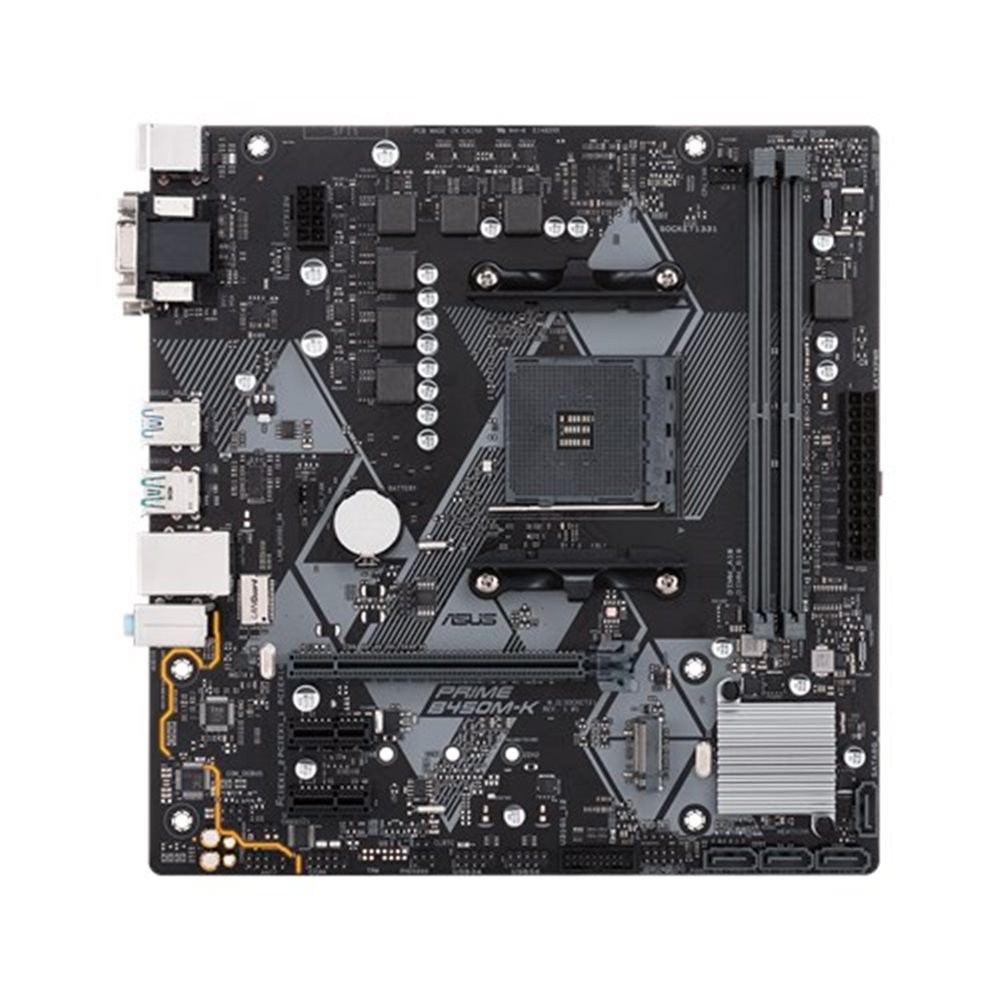

ASUS PRIME B450M-K

Technické specifikace:
Formát: microATX (24.4 cm x 24.4)
CPU: AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors
Čipová sada: AMD B450
Operační paměť: 2 x DIMM, Max. 32GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz,ECC
Lan: Realtek® RTL8111H
Zvuk: Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC
Graficka karta: V závislosti na CPU

Úložný prostor:
AMD B450 chipset :
-4 x SATA 6Gb/s port(s), gray,
-Support Raid 0, 1, 10
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
-1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
¨
Rozšiřující sloty:
AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors
-1 x PCIe 3.0/2.0 x16 (x16 mode)
AMD Ryzen™ with Radeon™ Vega Graphics Processor
-1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD B450 chipset
-2 x PCIe 2.0 x1

Externí porty:
-1 x PS/2 keyboard (purple)
-1 x PS/2 mouse (green)
-1 x DVI-D
-1 x D-Sub
-1 x LAN (RJ45) port(s)
-2 x USB 3.1 Gen 2
-4 x USB 3.1 Gen 1 ,
-3 x Audio jack(s)

Interní porty:
-1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
-2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
-1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
-1 x COM port(s) connector(s)
-4 x SATA 6Gb/s connector(s)
-1 x CPU Fan connector(s) (1 x 4 -pin)
-1 x Chassis Fan connector(s) (1 x 4 -pin)
-1 x S/PDIF out header(s)
-1 x 24-pin EATX Power connector(s)
-1 x 8-pin ATX 12V Power connector(s)
-1 x Front panel audio connector(s) (AAFP)
-1 x System panel(s)
-1 x Clear CMOS jumper(s)
-1 x Speaker connector

Příslušenství:
-User's manual
-I/O Shield
-2 x SATA 6Gb/s cable(s)
-1 x M.2 Screw Package
-1 x Supporting DVD

Bios: 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3,...
