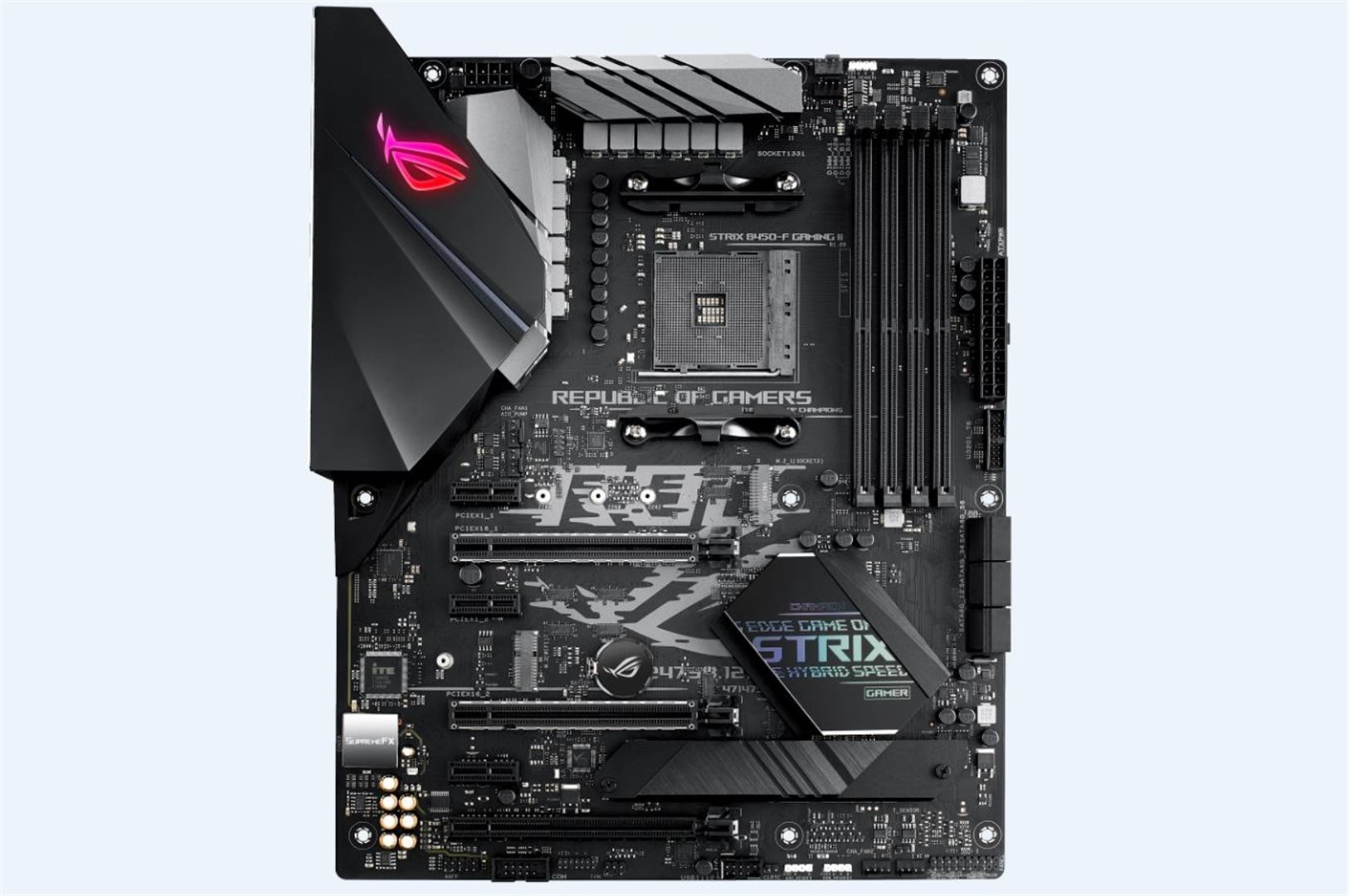

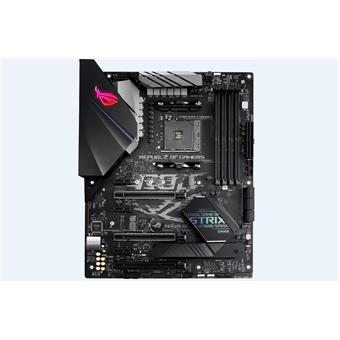

ASUS ROG STRIX B450-F GAMING II

Chipset: AMD B450

Rozměrový formát: ATX Form Factor (305 mm x 244 mm)
Podpora pro procesory: 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors
Patice procesoru: AM4

Pozice na paměti: 4x DDR4 DIMM
Podpora pro paměti: 4400(O.C)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: DDR4

• Dual Channel Memory Architecture

Grafická karta:

• Integrated Graphics Processor (na základě procesoru)

Multi GPU: Supports AMD 3-Way CrossFireX™ Technology

Zvuková karta:

• ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A

Síťová karta:

• Intel® I211-AT 1Gb Ethernet

Rozšiřující sloty:

• 3rd/2nd/1st Gen AMD Ryzen™ Processors
• 2x PCIe 3.0 x16 (x16 or x8/x4)
• 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
• 1x PCIe 3.0 x16 (x8 mode)
• AMD Athlon™ with Radeon™ Vega Graphics Processors
• 1x PCIe 3.0 x16 (x4 mode)
• AMD B450 chipset
• 1x PCIe 2.0 x16 (x4 mode)
• 3x PCIe 2.0 x1

RAID řadič: 0, 1, 10

SATA:

• 6x SATA 6Gb/s ports

M.2:

• 1x M.2 Socket 1 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

USB:

• zadní USB porty ( celkem 8 )
• 2x USB 3.2 Gen 2 port(s)(2 x Type-A)
• 4x USB 3.2 Gen 1 port(s)(3 x Type-A +1 x USB Type-C®)
• 2x USB 2.0 port(s)
• přední USB porty ( celkem 4 )
• 2x USB 3.2 Gen 1 port(s)
• 2x USB 2.0 port(s)

Interní porty:

• 1x CPU Fan connector(s)
• 1x CPU OPT Fan connector(s)
• 3x Chassis Fan connector(s)
• 1x AIO_PUMP connector
• 1x Addressable RGB header
• 1x AAFP connector
• 2x Aura RGB Strip Header(s)
• 1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
• 1x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
• 1x M.2 Socket 1 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
• 1x TPM header
• 1x COM port(s) connector(s)
• 6x SATA 6Gb/s connector(s)
• 1x 24-pin EATX Power connector(s)
• 1x 8-pin ATX 12V Power connector(s)
• 1x System panel(s)
• 1x Thermal sensor connector(s)
• 1x Clear CMOS jumper(s)

Externí porty:

• 1x Intel® I211-AT 1Gb Ethernet
• 1x PS/2 keyboard/mouse combo port(s)
• 1x DisplayPort
• 1x HDMI
• 2x USB 3.2 Gen 2
• 3x USB 3.2 Gen 1 Type-A
• 1x USB 3.2 Gen 1 USB Type-C®
• 2x USB 2.0
• 1x Optical S/PDIF out
• 5x Audio jack(s)
• 1x BIOS FlashBack™ Button(s)

Obsah balení:

• User's manual
• 4x SATA 6Gb/s cable(s)
• 1x Supporting DVD
• 1x ROG Strix stickers
• 1x Cable ties pack(s)
• 1x Extension Cable for RGB strips (80 cm)
• 1x Extension cable for Addressable LED
• 1x ROG Thank you card
• 1x M.2 SSD screw package(s)
• 1x M.2 Rubber Package(s)

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Stránka výrobce: https://www.asus.com/Motherboards/ROG-STRIX-B450-F-GAMING-II
